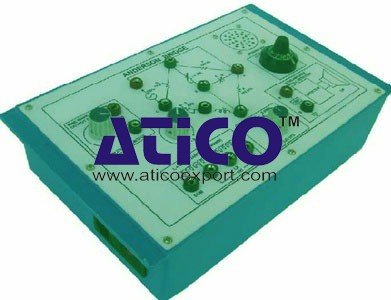

Anderson Bridge

Experimental training board has been designed specifically for the measurement of inductance of a coil by Anderson Bridge. It includes audio amplifier with speaker for null detection (Instead of head phone) and one KHz sine wave oscillator instead of externally used decade audio frequency generator The board is absolutely self contained and requires no other apparatus. Practical experience on these boards carries great educative value for Science and Engineering Students. Object: To measure the inductance of a given Coil by Anderson Bridge method. Features: The board consists of the following built-in parts : 01. Anderson Bridge circuit with arms values 02. Potentiometer for varying one arm 03. Three different value inductances 04. Potentiometer with calibrated dial 05. Five capacitors selected by a band switch 06. Auio Amplifier with its IC regulated Power Supply 07. One KHz Sine Wave Oscillator with its IC    regulated Power Supply 08. Speaker. 09. Mains ON/OFF switch, Fuse and Jewel light. Specifications:

• The unit is operative on 230V ±10% at 50Hz A.C. Mains.
• Adequate no. of patch cords stackable from rear both ends 4/ 2mm spring loaded plug length ½ metre.
• Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
• Strongly supported by detailed Operating Instructions, giving details of Object.
• Theory, Design procedures, Report Suggestions and Book References.
• Weight : 3 Kg. (Approx.)
• Dimension : W 340 x H 110 x D 210
