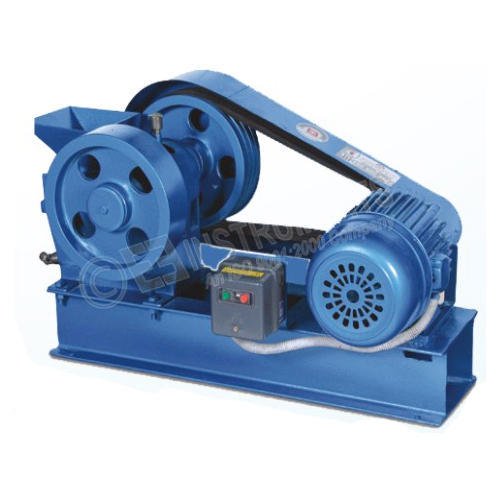

Jaw Crusher Laboratory Type

Jaw Crusher Laboratory Type Two jaws of manganese steel are provided in the jaw crusher. The move able jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward and strokes with a rocking action exerts pressure on …

Jaw Crusher Laboratory Type Two jaws of manganese steel are provided in the jaw crusher. The move able jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward and strokes with a rocking action exerts pressure on the coarse material to pass through the jaws. A hopper is provided at the top for feeding materials. The smooth jaws ensure a uniform product and easy cleaning is possible.

Max Size of feed	50mm (approximately) Product discharge
Size of feed	6mm to 18mm (adjustable)
Capacity	80kG/hr (approximately – based on material)
Operation On	440 volt, 3 Phase, 50hz, A.C. supply with 3H.P.
Electric motor	motor, a starter ‘ v ‘ belt pulley drive and mounting
